Version III Board with 26 Pin Ribbon Connector Header

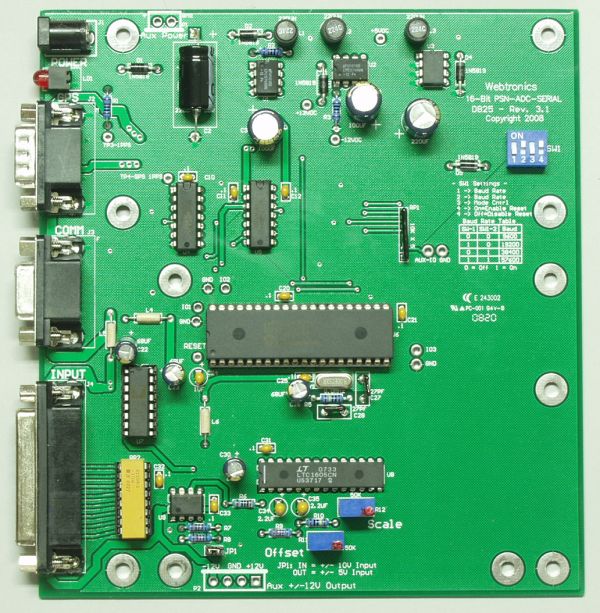

Version III Board with DB25 Pin Connector

Click on image for larger view

Features:

• Low Cost Analog to Digital Card for Seismic and Other Low Frequency Data Recording
• True 16-Bit Resolution with Oversampling (more information)
• Standalone ADC Board with RS-232 Serial Output
• 8 Single-Ended Analog Input Channels (Note 1)
• Compatible with WinSDR Datalogging Software
• Time Accuracy < 3 Millisecond with GPS Timing System
• Low power Requirement: < 1 Watt without Timing Reference;  < 1.5 Watts with GPS Timing
• Uses Microchip's Low Power High Speed dsPIC30F3014 Microprocessor
• Replaces PSN-ADC-SERIAL Version I and PSN-ADC-SERIAL Version II Boards

Specifications:

• Analog Inputs:
  • Channels: 8 Single-Ended Inputs (Note 1)
  • Resolution: 16-Bit Successive Approximation
  • Accuracy: 16 Bits
  • Dynamic Range: 96 db
  • Input Range: +- 5 or +-10 Volts,  Jumper Selectable
  • A/D Converter Chip: Linear Technology LTC1605CN
  • Input Impedance: 4.7k or 100k (Note 2)
• Sample Rates:
• 500, 250, 200, 100, 50, 20 and 10 Samples Per Second (Note 1)
• GPS Support:
  • Supports these GPS Receivers: Garmin GPS 16 / 18 Sensor or the Motorola ONCORE series of GPS receivers
  • +- 3 Millisecond Time Accuracy when Receiver is Locked to GPS Time
• Board Size:
  • 6.500 x 5.750 Inches or 16.5 x 14.6 Centimeters.
• Power Supply Requirements:
  • 15 to 28 VDC at ~100 MA

Notes:

1. At 500 SPS the board can record up to 4 channels
2. Other input impedance possible by changing one resistor pack

Cost:

• PSN-ADC-SERIAL Version III Board Without Power Supply Cost: $165.00
• Garmin GPS 18 Timing System Cost: $80.00
• Power Supply Options:
  • 110 VAC 60 Hz Wall Mounted Power Supply Cost: $10.00
  • Universal 110 VAC to 220 VAC 50 / 60 Hz Power Supply with one Adapter Plug Cost: $25.00
• Six Foot 9-Pin Male / Female RS-232 Cable Cost: $5.00
• Enclosures for the PSN-ADC-SERIAL Board

The PSN-ADC-SERIAL with DB25 Connector board comes with one DB-25 male connector and connector hood.

To order a board please contact me at the email address below or call me at: 1.650.365.7162

True 16-Bit Performance:

The Analog to Digital converter chip on the PSN-ADC-SERIAL board has an internal noise level of +- 3 counts. With the use of oversampling, the internal noise level of the chip can be averaged out to produce a true 16-Bit (96db) dynamic range. The amount of oversampling depends on the sample rate. See table below:

SPS	Average #	SPS	Average #
10	800	200	40
20	400	250	16
50	200	500	16
100	80

Board Differences:

There are two version of this ADC board. The boards are identical except for the Analog Input connector and location on the board. The board with the DB25 right angle connector is for customers who only need the ADC board. This version allows access to all of the connectors at the edge of the board.

The board with the 26 pin ribbon connector header can be used with the PSN-ADC-EQAMP Amplifier / Filter board with mating 26 pin header connector. This arrangement produces a module that can be mounted in a off-the-self box or this custom made Metal Enclosure.

Software:

WinSDR (Download) can be used to record data using the PSN-ADC-SERIAL Version III ADC board.  This program is included with the purchase of the board.

This Windows DLL Driver and Linux Library ( pdf version ) can be used by programmers who would like to write their own datalogger program or add the A/D board to an existing program.  The DLL Driver zip file includes an example, written in VC++ 6.0, showing how to use the PSNADBoard.DLL file.

Earthworm, a powerful seismic software package that can run under various operating systems, can now receive data using the PSN-ADC-SERIAL board or WinSDR. See this link for more information.

A device driver for the Windows version of Seislog is now available. Contact me for more information.

Input/Output Connector Information:

Power Supply Connector J1 and Power Requirements:

The power connector on the board is a standard 2.1mm X 5.5mm male jack. Positive voltage must be applied to the center pin. A diode on the board will prevent damage if the power is reversed.

The DC input range is 15 volts to 28 volts.  At 15 VDC the board draws ~70 ma, at 24VDC ~48 ma. With a Garmin GPS 18 Sensor connected to the board, the current draw is 100 ma at 15 VDC and 65 ma at 24 VDC.

Note: If the user supplies their own power supply the voltage across the large capacitor C2 should be checked to verify there is enough voltage for proper operation. The voltage should be between 14.6 and  28 VDC, with ~18 VDC being optimum. If the voltage is too low, the onboard DC regulators will not operate properly. If the voltage is too high, you will exceed the maximum voltage level of the parts on the A/D board.

GPS Comm Connector J2:

This connector is a 9 pin, DB-9 male connector used to communicate to a GPS receiver. A straight through serial cable should be used between the A/D board and the GPS's receiver interface board. See /gps/index.html for a GPS timing system compatible with the PSN-ADC-SERIAL board. The connector has the following pinout:

• Pin 1 - CD (Carrier Detect) Input, Used for the 1 PPS signal from the GPS receiver
• Pin 2 - Receiver Data Input from the GPS Receiver
• Pin 3 - Transmit Data Output to the GPS Receiver
• Pin 4 - +5 VDC for Garmin GPS 16/18 Power
• Pin 5 - Ground
• Pin 7 - Ground for Garmin GPS 16
• Pins 6, 8 and 9 - Not Connected

Comm Connector J3:

This connector is a 9 pin DB-9 female connector used to communicate to the PC running WinSDR. A straight through serial cable should be used between the A/D board and the your computer. The connector has the following pinout:

• Pin 1 - Not Connected
• Pin 2 - Transmit Data Output
• Pin 3 - Receive Data Input
• Pin 4 - DTR (Data Terminal Ready) Input - CPU Reset Line
• Pin 5 - Ground
• Pin 6 - Not Connected
• Pin 7 - Not Connected
• Pin 8 - Not Connected
• Pin 9 - Not Connected

The DTR line ( Pin 4 ) is used to reset the CPU on the A/D board. This line should be below 2 VDC for normal operation. If the LED on the board does not come on, it may be do to this line holding the CPU in the reset state. Position 1 of Switch SW1 can be used to disable this feature. If disabled, off position, the host computer can not reset the CPU on the A/D board.

Analog Input / Power Output Connector J4:

The 25 pin DB-25 female connector has the following pinout:

• Pin 1 - Analog Input Channel 1
• Pin 2 - Analog Input Channel 2
• Pin 3 - Analog Input Channel 3
• Pin 4 - Analog Input Channel 4
• Pin 5 - Analog Input Channel 5
• Pin 6 - Analog Input Channel 6
• Pin 7 - Analog Input Channel 7
• Pin 8 - Analog Input Channel 8
• Pin 9 - Analog Ground
• Pins 10 and 11 - +12 VDC Output Power. 75 MA Max.
• Pin 12 - Not Connected
• Pin 13 - Power Ground
• Pins 14, 15, 16, 17, 18, 19, 20 and 21 Analog Grounds for Channels 1 to 8
• Pin 22 - Not Connected
• Pins 23 and 24 - -12 VDC Output Power. 75 MA Max.
• Pin 25 - Power Ground

The 26 pin .1 inch dual row header has the following pinout:

• Pin 1 - Analog Input Channel 1
• Pin 3 - Analog Input Channel 2
• Pin 5 - Analog Input Channel 3
• Pin 7 - Analog Input Channel 4
• Pin 9 - Analog Input Channel 5
• Pin 11 - Analog Input Channel 6
• Pin 13 - Analog Input Channel 7
• Pin 15 - Analog Input Channel 8
• Pins 2, 4, 6, 8, 10, 12, 14 and 16 Analog Ground for Channels 1 to 8
• Pins 19 and 21 - +12 VDC Output Power. 100 MA Max.
• Pins 20 and 22 - -12 VDC Output Power. 100 MA Max.
• Pins 17, 18, 23, 24, 25, 26 Power Ground

Jumpers and Switches:

Jumper JP1:

This jumper controls the input voltage range of the A/D converter. When the jumper is in, the input voltage range is +- 10 volts. With the jumper removed, the input range is +- 5 volts. The jumper controls all 8 analog input channels.

Switch SW1:

Switches 1 and 2 Control the Baud Rate. See Table Below. (Default = 38.4K)

Switch 3 On - Version II Emulation Mode - See Note Below
Switch 3 Off - Normal Mode

Switch 4 On - Allows the CPU on the ADC board to be reset by the host computer using J3 DTR pin 4 (Default)
Switch 4 Off - Host computer can not reset ADC CPU.



         Baud Rate Table

SW1	SW2	Rate
Off	Off	9600
On	Off	19200
Off	On	38400
On	On	57600

Emulation Mode:

SW1 Switch 3 controls the output format of the ADC board. When enabled, Switch 3 On, the output format will resemble the Version II ADC board. This mode will allow software written for the older board to operate without modification. WinSDR users should use version 4.1.5 or above with Switch 3 Off so WinSDR
knows that you are using the new Version III board.

Additional Information:

• One to Four Channel Amplifier / Filter Board for the 16-Bit Serial Output A/D Board
• GPS Timing System for the PSN-ADC-SERIAL Board
• Enclosures for the PSN-ADC-SERIAL Board
• Data Sheet for the Analog To Digital Convert Chip used on the PSN-ADC-SERIAL Board:
  • Linear Technology LTC1605 16 Bit A/D Chip
